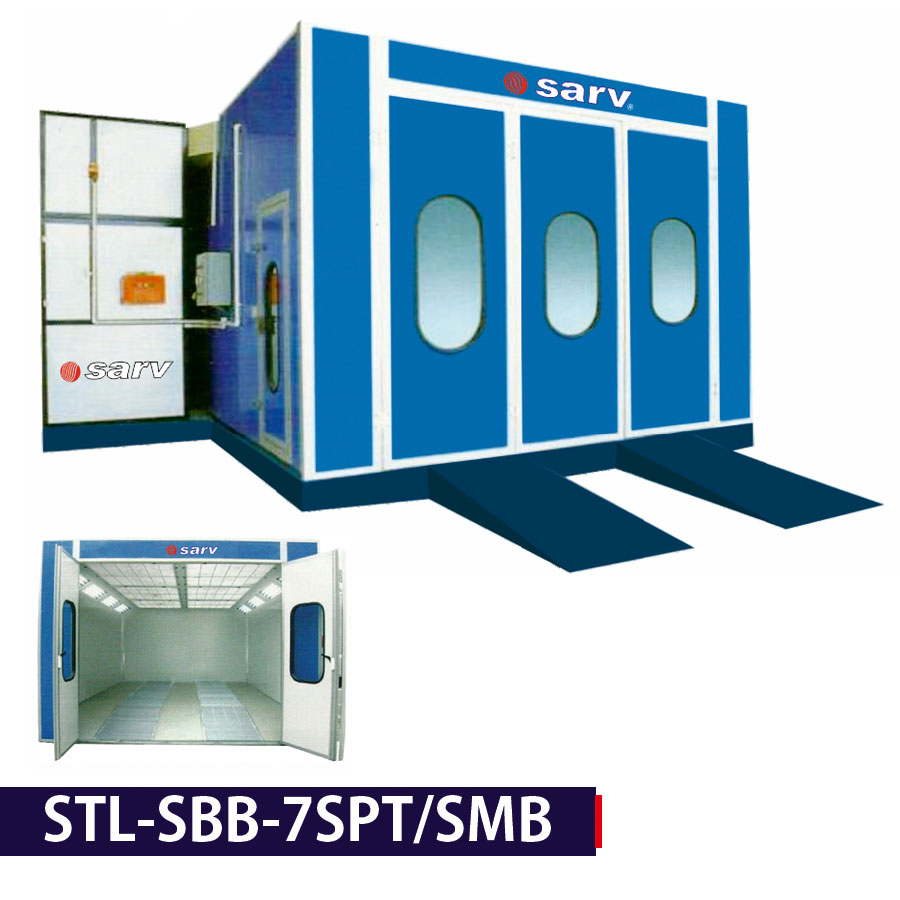

STL-SBB-7SPT – Spray and Bake Paint Booth for Cars & LCV’s

SARV’s Spray and Bake Paint Booth
Perfect for Spraying and painting the vehicles to give them a brand new look.
Purification system
- Dual filtering structure, the primary filter can capture granules than 10 pm. Ceiling filters capture granules larger than 4pm. Its filtering rate reaches 98%. Air pressure balance gauge, TSP <1.4mg/m3
Controlling system
- Spray & baking switch, light switch, emergency stop, breakdown alarm.
Heating system
- Italy Reillo G20 diesel burner, 180000 kcal/h, 10N damper motor SUS304 stainless steel heat exchanger, argon arc, welding. Max temp 80ºC heating time : 4-6(20-60ºC), fuel consumption : 4-5 ltr./vehicle
Lighting system
- Ceiling light : 24 Pcs. 36W, Philips Lamp, 900 Lux

Model
Cabin system	Wallboard	EPS Colorful steel skin panel, 50mm thick, tongue & groove style, compound Construction. Anti-flame and heat insulation, galvanized steel roof panels.
Cabin system	Basement	Galvanized Steel sheet and square pipe assembling, grid & embossed plate floor, three embossed steel ramps.
Circulation System	Inlet fan	Capacity	24000 m3/h
		Pressure	815pa
		Velocity	900rpm
		Power	4.0 kw
		Quantity	2 Set
		Capacity	15000 m3/h
		Pressure	815pa
		Velocity	900rpm
		Power	5.5 kw
		Quantity	1 Set
Size	Outside Size	7000x5560x3430 (mm)
	Inside Size	6900x4000x2750 (mm)
	Front Door	3000(w)x2700(h) (mm)
Power consumption	6.5kw	10.5kw	16kw
