- The Joint Play Detector is a specialized diagnostic system designed to identify wear and play in steering and suspension components of vehicles.
- It allows technicians to quickly and efficiently detect looseness in critical parts such as ball joints, bushings, pivot points, link bolts, and shock absorber mountings.

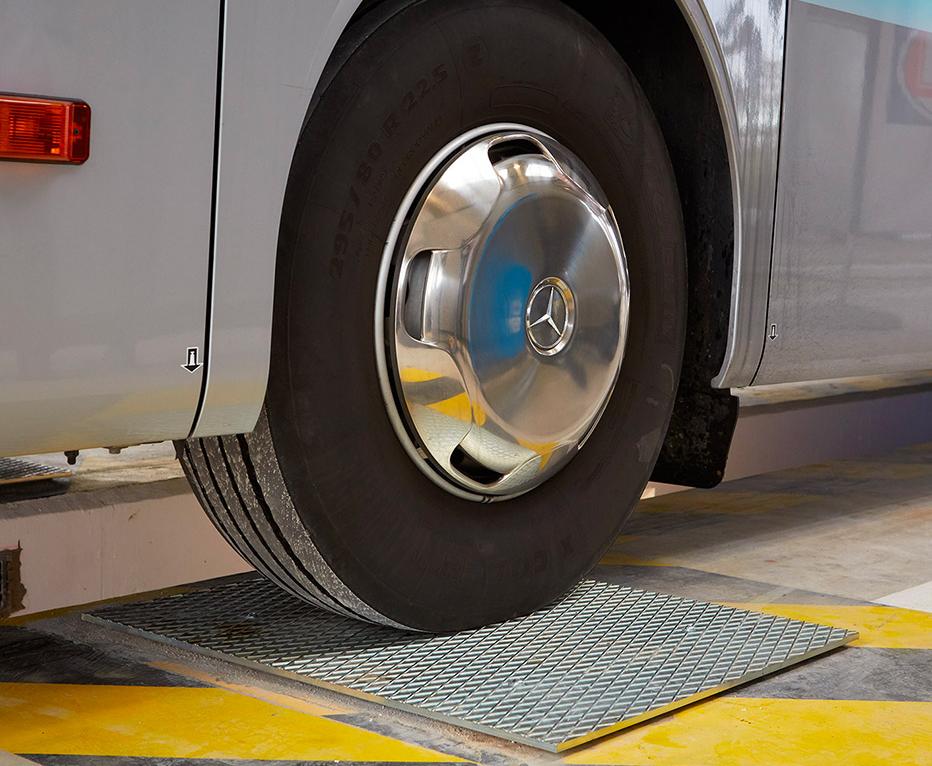

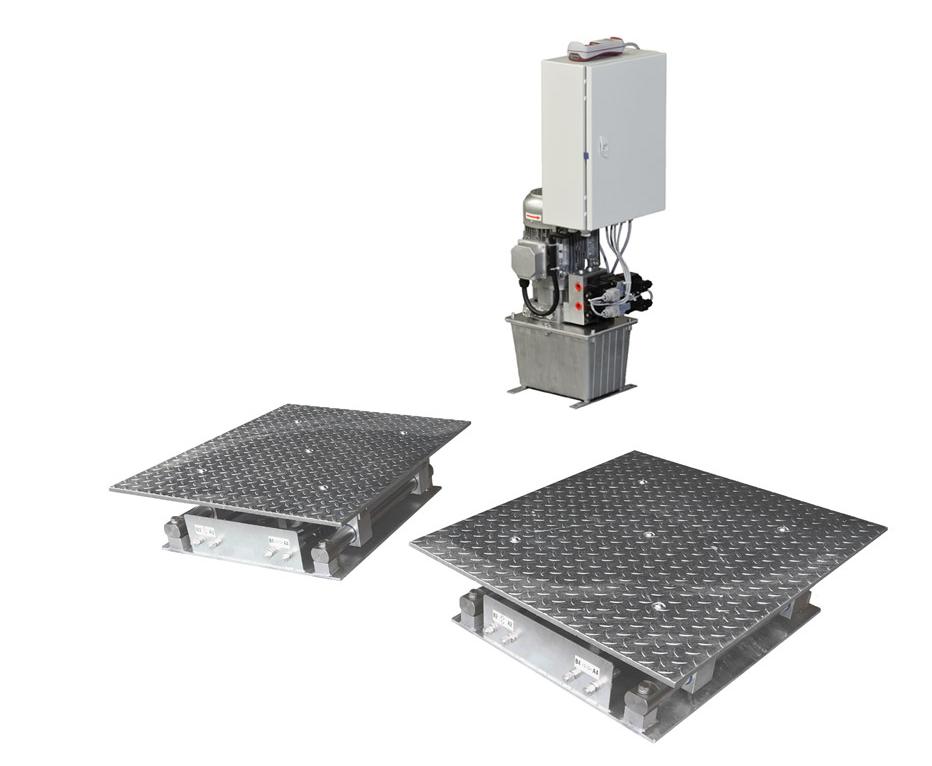

- The system uses movable test plates that simulate real-world forces on vehicle wheels, enabling accurate detection of hidden mechanical issues.
- Controlled via a remote unit, the plates can move in multiple directions including forward, backward, diagonal, and lateral movements for comprehensive testing.
- The detector provides clear visual feedback, helping technicians identify faults instantly without complex procedures.
- Designed for use in inspection stations, workshops, and service centers, ensuring improved vehicle safety and maintenance quality.
- Built with robust materials, it ensures durability and consistent performance under heavy usage conditions.
- Suitable for passenger cars and light trucks, making it a versatile addition to any diagnostic setup.
- Helps reduce maintenance time by enabling faster fault detection and repair planning.
- Enhances overall vehicle safety by identifying critical wear issues before they lead to major failures.
Hydraulic Steering & Suspension Play Detector for Vehicle Testing
- Sarveshwari presents a high-performance Joint Play Detector for accurate inspection of steering and suspension components.
- Enables quick detection of wear and looseness in vehicle joints.
- Ideal for passenger cars and light commercial vehicles.
- Remote-controlled plate movement for precise and efficient testing.
- Heavy-duty design ensures reliability in inspection lanes and workshops.
Why Sarv Garage Equipment Leads the Industry in India?
- In-House Manufacturing – Precision-built with stringent quality control.
- Pan India Presence – Trusted by workshops and service centers nationwide.
- 39 Yrs of Experience * – Delivering complete garage equipment solutions since 1987.
- OEM & Custom Solutions – Tailored to your workshop requirements.
- Nationwide Sales & Service – Installation and support across India.
- Ready Spare Parts Availability – In-house manufactured spares for uninterrupted operations.
- Trusted Dealer Network – Long-standing partnerships across the country.
Get a Quote
Complete the form to receive your quote within 48 hours. You can also contact us directly at +91 91680 12124 or email us at info@garageequipments.com or book a demo
Product Information
- Description
- Technical Data
- Technical Specifications
- Applications
- Key Features
- Reliable Technical Support Across India
- Frequently Asked Questions (FAQ)
Description
Technical Data
| Max Working pressure | 180 Bar |
| Max Horizontal Force | 30KN |
| Max Axle Load | 20T |
| Movement Speed | 70mn/sec |
| Operation | Electro-Hydraulic |
Technical Specifications
Maximum Load Capacity per Axle: 16 Tons
Maximum Force per Plate: 30 kN
Maximum Plate Movement (Each Side): 100 mm
Minimum Test Plate Length: 800 mm
Minimum Test Plate Width: 950 mm
Control System: Remote-Controlled Operation
Movement Types: Forward, Backward, Diagonal, Inner & Outer
Applications
Vehicle inspection centers
Automotive service workshops
Suspension and steering diagnostic stations
Government and RTO inspection facilities
Fleet maintenance and safety inspection units
Key Features
Multi-Directional Plate Movement – Allows forward, backward, diagonal, and lateral motion for complete inspection.
Accurate Wear Detection System – Identifies looseness in joints, bushings, and suspension components.
Remote-Controlled Operation – Enables easy and precise control of plate movement during testing.
High Load Capacity (16 Tons) – Suitable for passenger vehicles and light commercial vehicles.
Real-Time Fault Identification – Provides instant visual detection of mechanical issues.
Heavy-Duty Test Plates – Designed for durability and consistent performance under repeated use.
Comprehensive Component Testing – Covers ball joints, pivot points, shock mounts, and steering parts.
Efficient Diagnostic Process – Reduces inspection time and improves workshop productivity.
Compact Installation Design – Fits easily into inspection lanes and workshop floors.
Enhanced Vehicle Safety – Helps detect critical issues early, preventing costly repairs and accidents.
Reliable Technical Support Across India
When you invest, you’re not just buying a machine—you’re getting complete support to keep your workshop running smoothly across India.
🛠️Hassle-free Installation: Our experts visit your location for proper setup and commissioning, so your machine is ready to use from day one.
🎓Easy-to-understand Training: We train your operators and workshop staff in simple terms, ensuring safe and efficient usage.
🌍Pan-India Service Network: No matter where your garage is, our support team is always within reach.
⚙️Genuine Spare Parts: Quick access to original spare parts to avoid downtime and maintain performance.
📅Annual Maintenance Plans (AMC): Regular servicing options to keep your machine in top condition year-round.
📞Quick Troubleshooting Support: Get help instantly through calls or video support whenever you face an issue.
💻Remote Diagnostics: Our team can identify and guide you through fixes without waiting for a visit.
🧰Preventive Maintenance Guidance: Simple tips to help you avoid problems before they occur.
📏Scheduled Calibration & Servicing: Ensuring your alignment readings stay accurate over time.
🛡️Warranty Support: Coverage based on your machine model for added peace of mind.
In short, we make sure your machine works accurately, efficiently, and without interruptions—so you can focus on growing your business.
Frequently Asked Questions (FAQ)
What is a joint play detector used for?
It is used to detect wear and looseness in steering and suspension components of a vehicle.
What types of vehicles can joint play detector test?
It is suitable for passenger cars and light commercial vehicles.
How does the testing process work?
The system uses movable plates to apply forces to the wheels, revealing any play or looseness in components.
What movements can the plates perform?
The plates can move forward, backward, diagonally, and sideways for comprehensive testing.
Is the joint play detector easy to operate?
Yes, it is controlled via a remote unit, making it simple and efficient to use.
What is the maximum load capacity?
The system supports up to 16 tons per axle.
Does joint play detector require frequent maintenance?
No, it is built with durable components designed for long-term use with minimal maintenance.
Can this joint play detector be customized as per workshop requirements?
Yes, customization options are available based on installation and operational needs.
