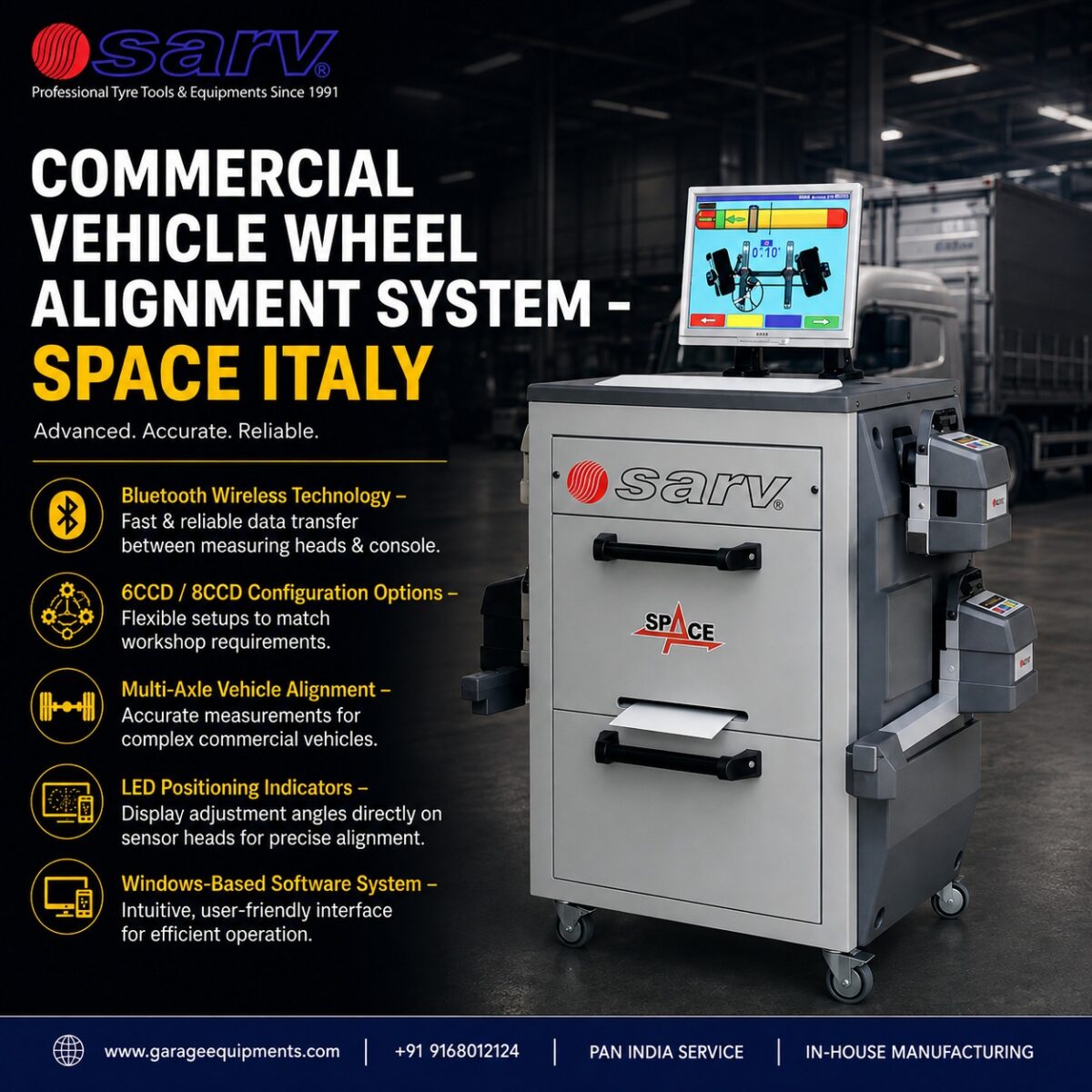

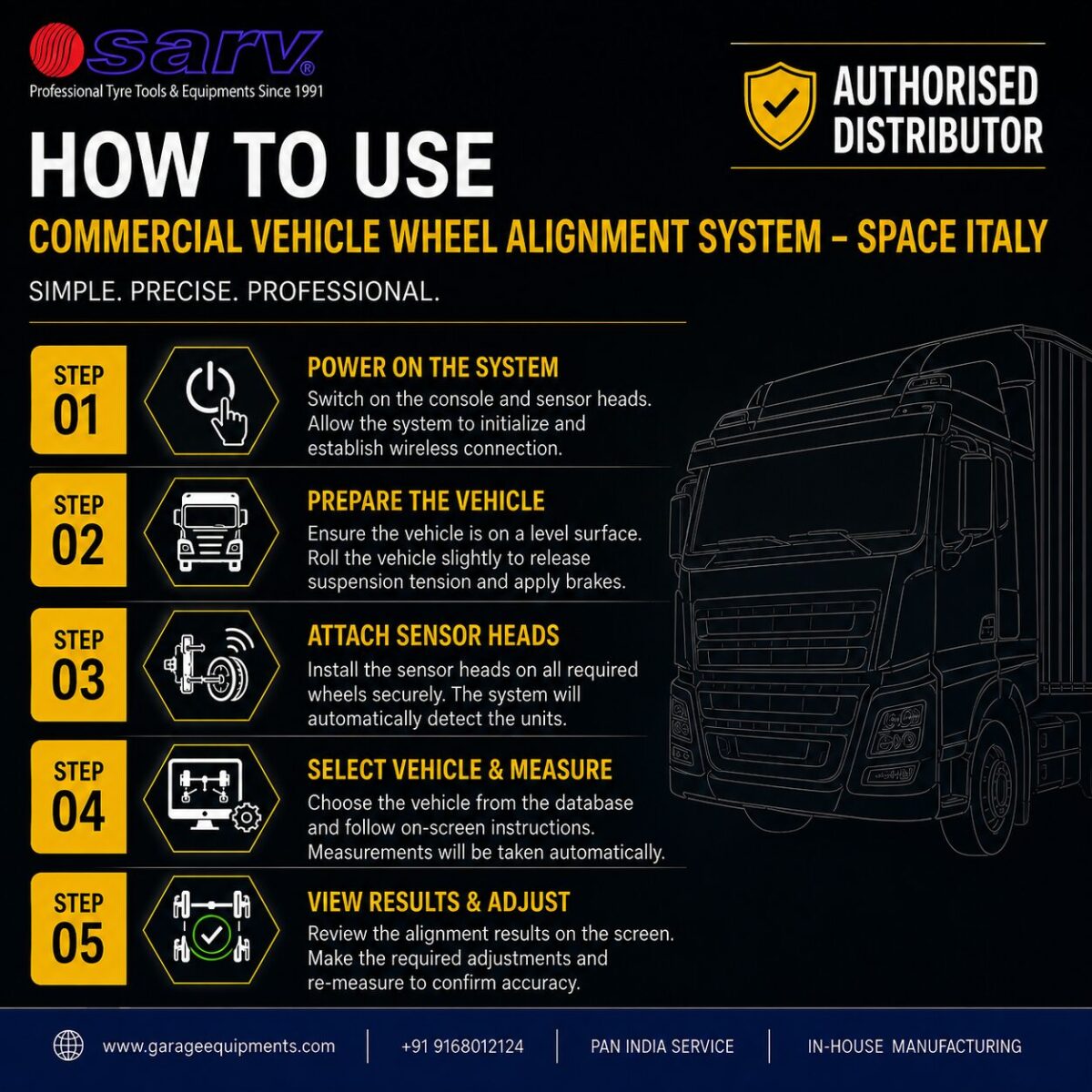

- The ALADIN BTH Wheel Alignment Machine (ART86BTH/ART98BTH) is a modern CCD-based alignment system engineered for commercial vehicle workshops.
- Available in both 6CCD and 8CCD configurations, it offers flexibility depending on workshop size and operational requirements.
- Bluetooth communication between measuring heads and the main console ensures fast and reliable data transfer without cable limitations.
- Equipped with LED indicators on sensor heads to display unit adjustment angles, helping technicians achieve accurate positioning quickly.
- The system supports data management and display within a Windows-based environment, making it intuitive and easy to operate.
- Designed for multi-axle vehicles, allowing accurate alignment measurements across complex commercial vehicle setups.
- Features a built-in customer database to store vehicle records, number plates, and service history for improved workflow management.
- Includes a global vehicle database with the option to add and edit vehicle data as per workshop needs.
- The software interface is designed to be both powerful and user-friendly, enabling faster alignment procedures with minimal training.
- Built with high-quality components to ensure reliability, reduced downtime, and long service life in demanding workshop conditions.
Technical Specifications
Technology: CCD Alignment System
Configuration: 6CCD / 8CCD Options
Communication: Bluetooth Wireless Transmission
Software Platform: Windows-Based Alignment Software

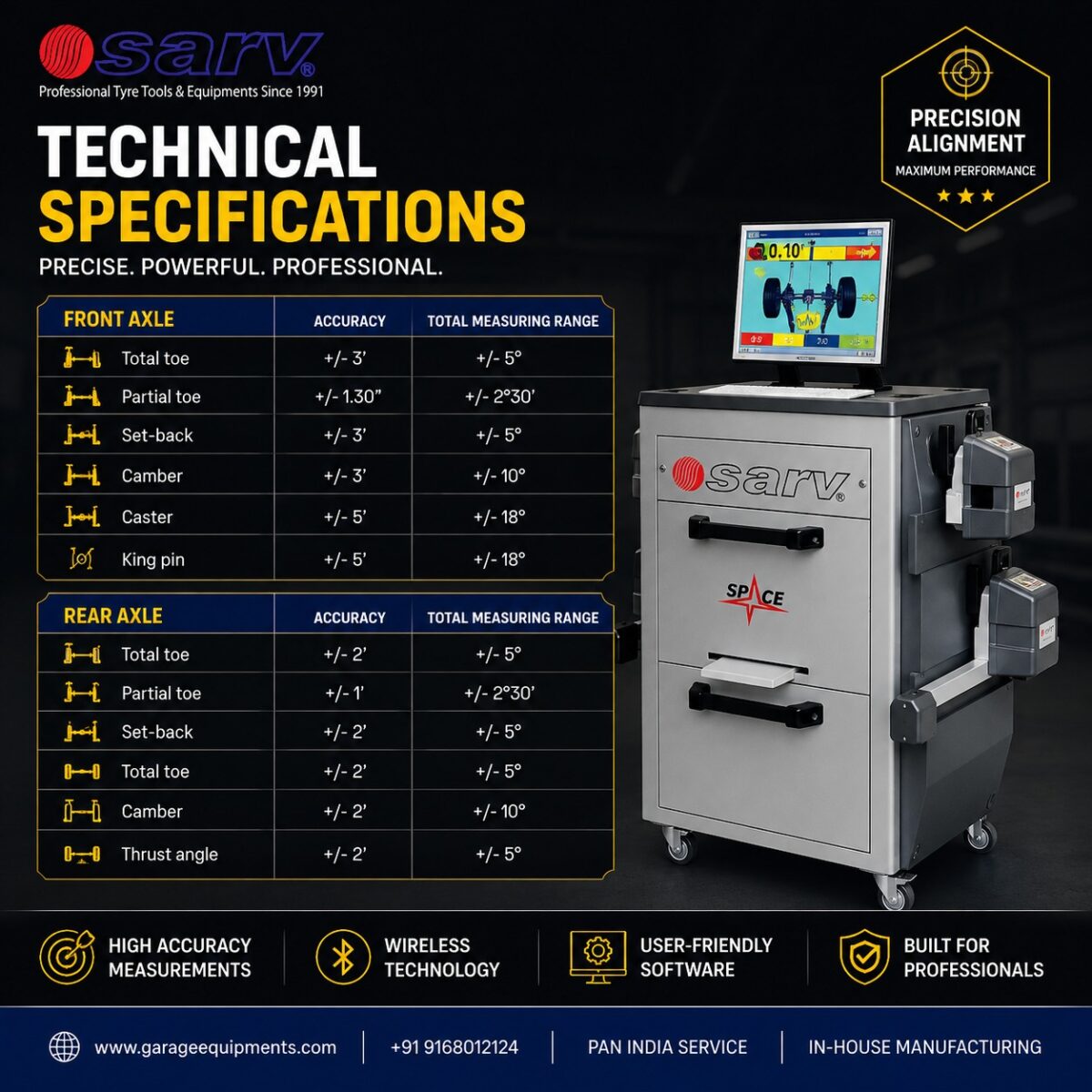

Front Axle Measurement Range & Accuracy:
Total Toe: Accuracy ±3’, Range ±5°
Partial Toe: Accuracy ±1.30’, Range ±2°30’
Set-back: Accuracy ±3’, Range ±5°
Camber: Accuracy ±3’, Range ±10°
Caster: Accuracy ±5’, Range ±18°
King Pin: Accuracy ±5’, Range ±18°
Rear Axle Measurement Range & Accuracy:
Total Toe: Accuracy ±2’, Range ±5°
Partial Toe: Accuracy ±1’, Range ±2°30’
Set-back: Accuracy ±2’, Range ±5°
Camber: Accuracy ±2’, Range ±10°
Thrust Angle: Accuracy ±2’, Range ±5°
Applications
Commercial vehicle workshops
Truck and trailer service centers
Fleet maintenance operations
Multi-axle vehicle alignment facilities
Automotive service stations handling heavy vehicles
Key Features
Bluetooth Wireless Technology – Enables fast and reliable data transfer between measuring heads and console without cables.
6CCD / 8CCD Configuration Options – Offers flexibility to choose the right setup based on workshop needs.
Multi-Axle Vehicle Alignment Capability – Accurately measures alignment across complex commercial vehicle setups.
LED Positioning Indicators – Displays adjustment angles directly on sensor heads for precise alignment setup.
Windows-Based Software System – Provides an intuitive and easy-to-use interface for efficient operation.
Integrated Customer Database – Stores vehicle details, service history, and customer records for better workflow management.
Global Vehicle Database Support – Includes worldwide vehicle data with options to add and edit entries.
High-Speed Data Processing – Ensures quick measurement and faster alignment procedures.
Reliable Industrial Design – Built for durability and consistent performance in busy workshop environments.

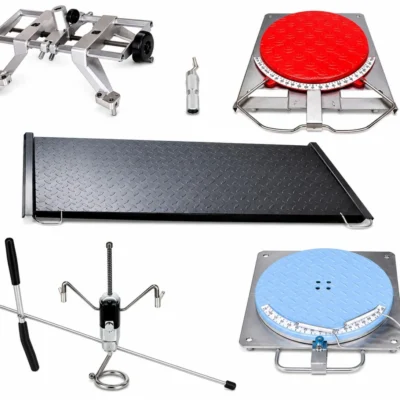

Complete Alignment Solution – Comes with all necessary components for immediate installation and use.
Reliable Technical Support Across India
When you invest, you’re not just buying a machine—you’re getting complete support to keep your workshop running smoothly across India.
🛠️Hassle-free Installation: Our experts visit your location for proper setup and commissioning, so your machine is ready to use from day one.
🎓Easy-to-understand Training: We train your operators and workshop staff in simple terms, ensuring safe and efficient usage.
🌍Pan-India Service Network: No matter where your garage is, our support team is always within reach.
⚙️Genuine Spare Parts: Quick access to original spare parts to avoid downtime and maintain performance.
📅Annual Maintenance Plans (AMC): Regular servicing options to keep your machine in top condition year-round.
📞Quick Troubleshooting Support: Get help instantly through calls or video support whenever you face an issue.
💻Remote Diagnostics: Our team can identify and guide you through fixes without waiting for a visit.
🧰Preventive Maintenance Guidance: Simple tips to help you avoid problems before they occur.
📏Scheduled Calibration & Servicing: Ensuring your alignment readings stay accurate over time.
🛡️Warranty Support: Coverage based on your machine model for added peace of mind.
In short, we make sure your machine works accurately, efficiently, and without interruptions—so you can focus on growing your business.
