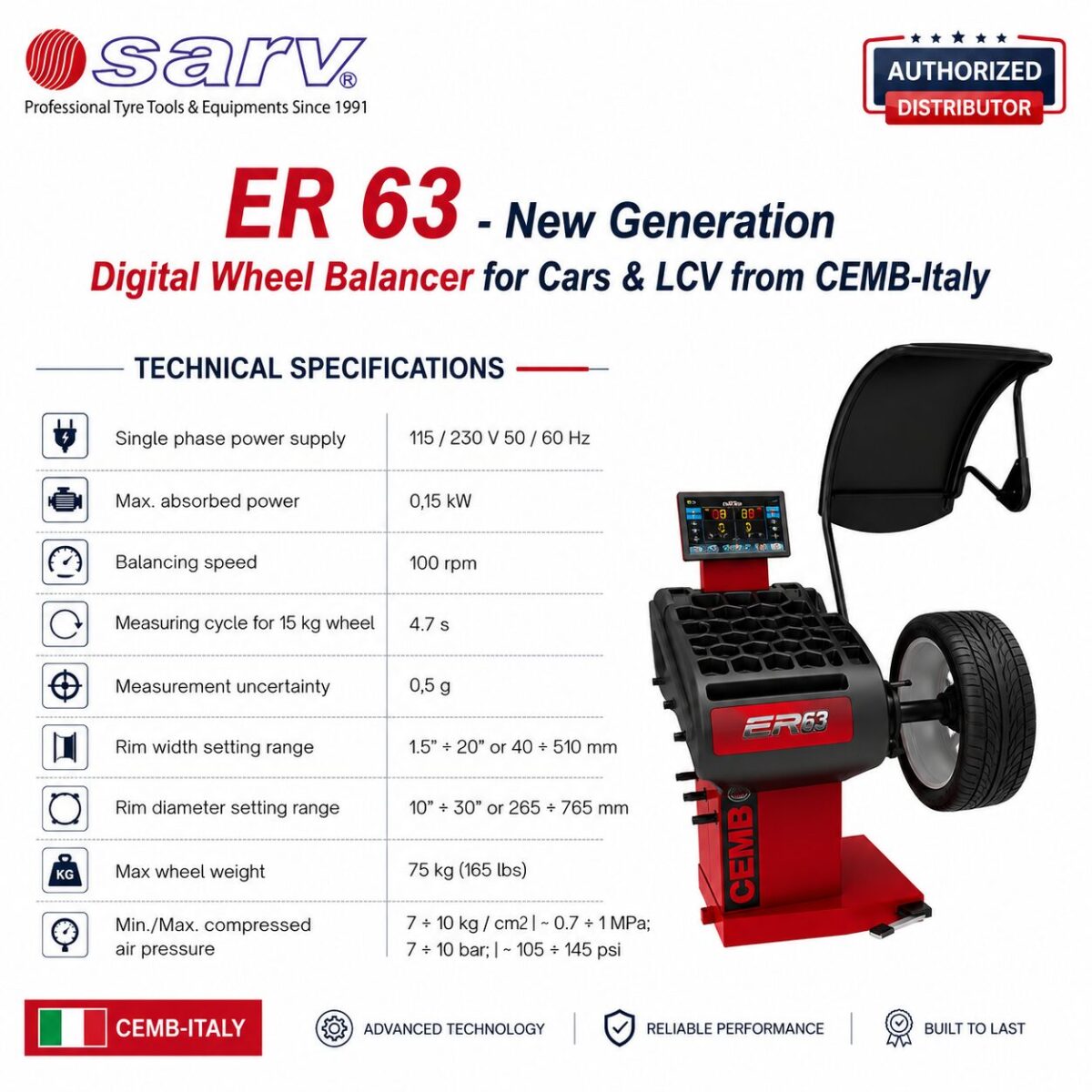

| Single phase power supply | 115 / 230 V 50 / 60 Hz |
| Max. absorbed power | 0,15 kW |
| Balancing speed | 100 rpm |
| Measuring cycle for 15 kg wheel | 4.7 s |
| Measurement uncertainty | 0,5 g |
| Rim width setting range | 1.5” ÷ 20” or 40 ÷ 510 mm |
| Rim diameter setting range | 10” ÷ 30” or 265 ÷ 765 mm |
| Max wheel weight | 75 kg (165 lbs) |
| Min./Max. compressed air pressure | 7 ÷ 10 kg / cm2 | ~ 0.7 ÷ 1 MPa; 7 ÷ 10 bar; | ~ 105 ÷ 145 psi |

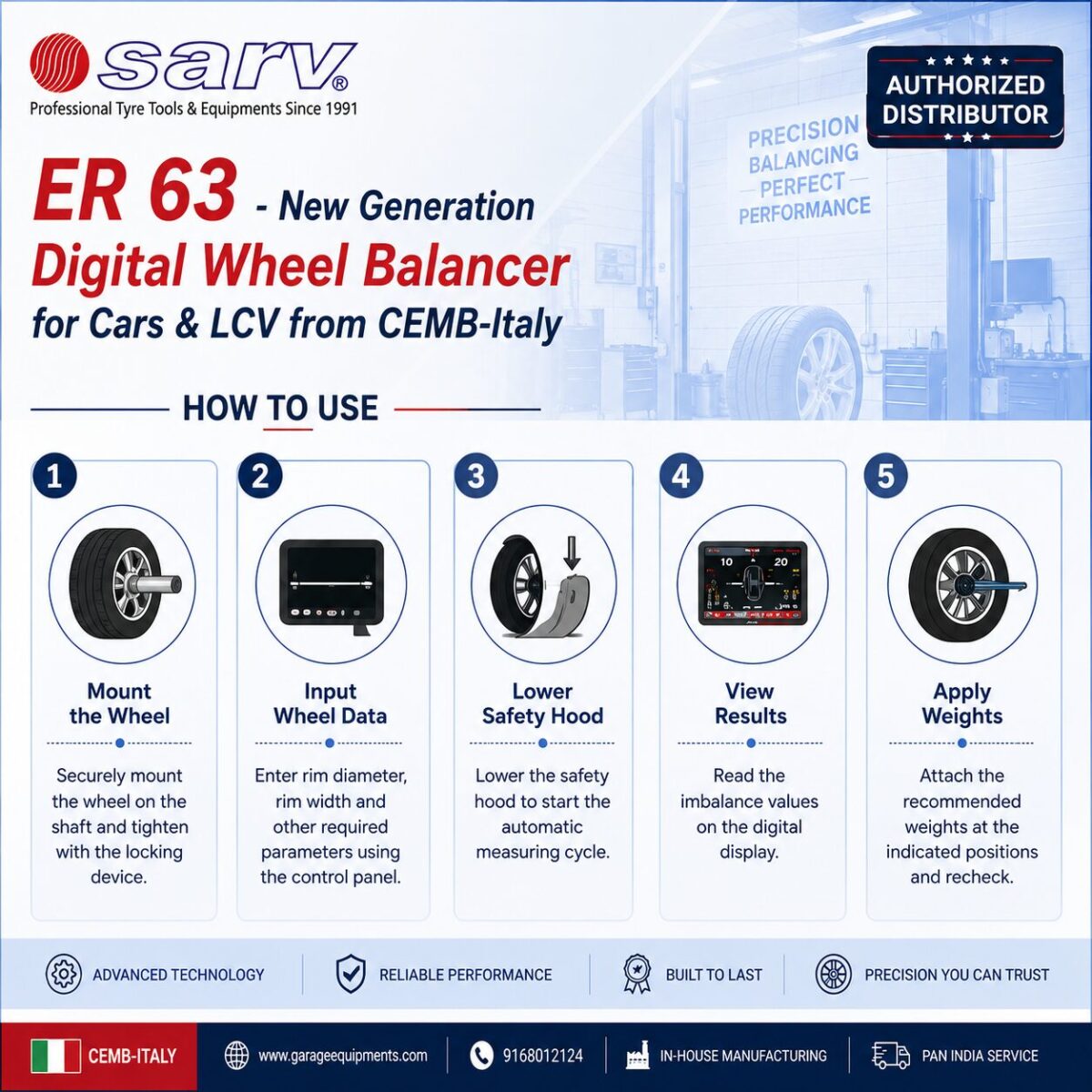

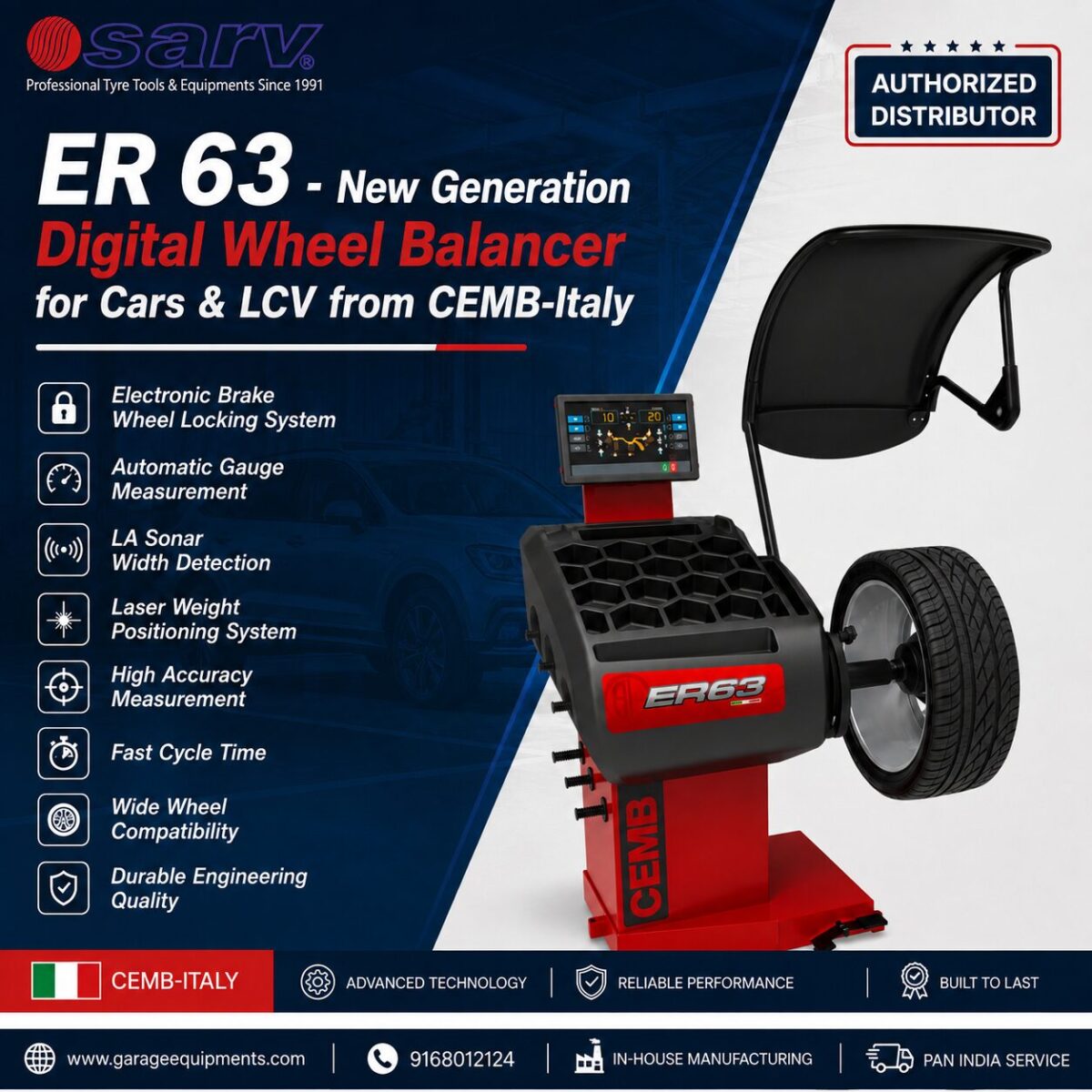

ER 63 – New Generation Digital Wheel Balancer for Cars & LCV from CEMB-Italy
- SARV’s New generation digital wheel balancer
- Wheel locking system by electric brake
- Automatic Gauge measurement up to 28″ rims
- LA Sonar for automatic wheel width measurement
- Laser indicator for weight positioning inside the rim
- SARV’s New generation digital wheel balancer
- Wheel locking system by electric brake
- Automatic Gauge measurement up to 28″ rims
- LA Sonar for automatic wheel width measurement
- Laser indicator for weight positioning inside the rim
Technical Data
