- The DL-1500 Tyre Changing Machine is a heavy-duty solution engineered for handling truck and bus tyres with maximum efficiency and precision.
- Designed to accommodate rim sizes from 14” to 26”, making it suitable for a wide range of commercial vehicle applications.
- The lifting arm and universal chuck are powered by a hydraulic system, ensuring smooth operation and reducing manual effort.
- Equipped with versatile locking jaws that offer multiple gripping options for different wheel types and sizes.
- Features an electrical control system that allows easy forward and backward movement during tyre changing operations.
- Includes a universal tool carrier arm with pendulous bead breaking disc and hook for efficient tyre removal.
- The machine is designed with a movable low-voltage control unit, providing enhanced operator safety and ease of use.
- Built for durability, it ensures stable and consistent performance in demanding workshop environments.
- Ideal for handling large and heavy wheels, thanks to its strong structure and high load capacity.
- Comes with essential accessories and tools, making it a complete tyre changing solution for commercial workshops.
Technical Specifications
Rim Diameter Range: 14” – 26”
Max Wheel Weight: 500 kg
Max Wheel Width: 780 mm
Max Wheel Diameter: 1600 mm
Hydraulic Pump Motor: 1.5 kW, 400V, 3PH, 50Hz
Gearbox Motor: 2.2 kW, 400V, 3PH, 50Hz
Operating Pressure: 130 bar
Bead Breaking Force: 2500 kg
Control Voltage: 24V
Machine Weight: 570 kg

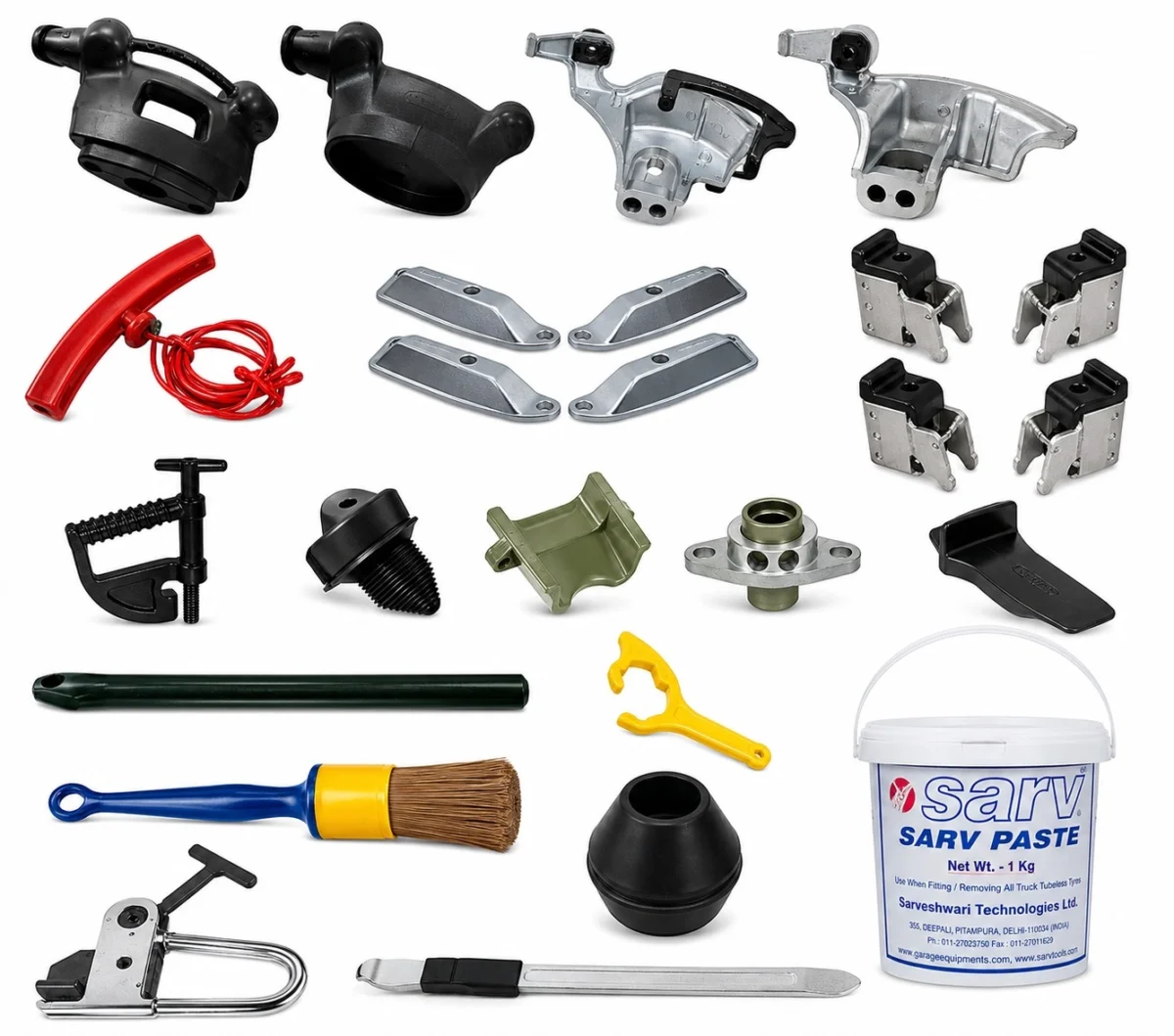

Accessories
220008 (Qty 01) – Tyre Lever 600 mm
220012 (Qty 01) – Lever for Removal of Locking Rings
220004 (Qty 01) – Lever for Tubeless Tyre 800 mm
2200313 (Qty 01) – Rim Clamp for Tubeless Truck Alloy Rim
220415 (Qty 01) – Special Brush with Wooden Handle (for Trucks & Earthmovers)
2200120 (Qty 01) – Sarv Paste 1 kg
DL1500-704 (Qty 01) – Manual Lubrication Pump
DL1500-705 (Qty 01) – Funnel for Hydraulic / Gear Oil
Fast12×150 (Qty 05) – Pin Type Anchor Bolt (12 mm × 150 mm)
DL1500-510.1 / 510.3 / 510.5 (Qty 02 each) – Fuse 1A, 3A, and 5A
IM DL1500 (Qty 01) – Instruction Manual
SM DL1500 (Qty 01) – Spare Part Manual
Applications
Truck and bus tyre service workshops
Commercial vehicle maintenance centers
Fleet management facilities
Heavy vehicle tyre repair stations
Workshops using Wheel Balancing Machine setups
Key Features
Heavy-Duty Hydraulic Operation – Ensures smooth lifting, clamping, and tyre handling with minimal effort.
Wide Rim Compatibility – Supports rim sizes from 14” to 26”, suitable for various commercial vehicles.
Powerful Bead Breaking System – Delivers up to 2500 kg force for easy tyre removal.
Multi-Position Locking Jaws – Provides secure grip for different wheel sizes and types.
Electric Forward & Reverse Control – Enhances operational flexibility and precision.
Universal Tool Carrier Arm – Equipped with bead breaker disc and hook for efficient tyre handling.
Low Voltage Safety System – Operates on 24V control voltage for safe and stable usage.
Movable Control Unit – Offers flexibility and ease of operation within the workspace.
Robust Industrial Construction – Built for long-term durability in heavy-duty environments.
Perfect Workshop Companion – Complements Wheel Balancing Machine for a complete tyre service solution.
